Back Bar Cooler Evap Fans, 2,300 BTU, 360 CFM
$740.00
| Choose Voltage | 115, 220 |
|---|

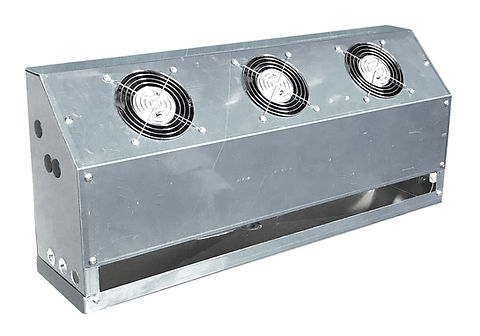

Model # EVHA230 Back Bar Reach-In Cooler Evaporator
This compact, wall-mounted unit whose low height makes it ideal for undercounter reach-in or drawer-type fixtures. The unit draws air in at the bottom and discharges out the front.
The 45°-facing fan design can direct the air where needed, usually onto drop-in trays of condiments in salad bar or sandwich preparation fixtures.
This unit is designed for 35° to 40°F fixture temperature with off-cycle defrost. The unit is designed to operate at 10° to 17° TD and 16 hours per day compressor run time
Coils have copper tubes with aluminum fins, mechanically bonded for efficient heat transfer. The coils are dehydrated and sealed
• Sturdy aluminum cabinet
• Knockouts are conveniently located for refrigerant lines
• Expansion valve can be mounted inside the cabinet and connections are sweat-type
• Motors are thermally protected and permanently lubricated
• Sweat inlet connection to reduce leaks
Specifications:
British thermal unit (Btu/H): 2,300
Cubic Foot per Minute ( CFM ): 360
Quantity, Fan Motors: 3
Width( inches ): 27-3/4″
Depth( inches ): 6.5″
Height ( inches ): 12″
