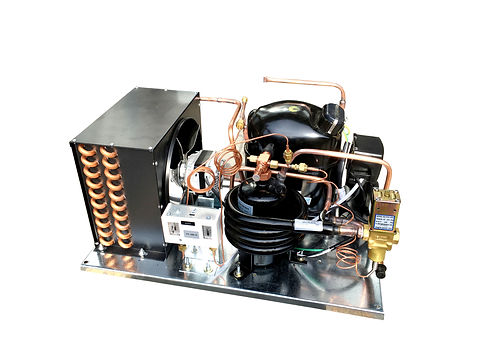

Combo Air & Water Unit QT AKA4460YXA Unit 1/2 HP, R134a, 115V/1PH

Combo Air & Water Condensing Unit 1/2 HP, High Temp, R134a, 115V

Made In USA. Assembled with QTAKA4460YXA Compressor. One Year Manufacturer’s Warranty.

Product Description

Type:Reciprocating

Application:HBP – High Back Pressure

Refrigerant:R-134a

Voltage/Frequency:115V ~ 60Hz 100V ~ 50Hz

Performance

Refrigeration Capacity Input Power Efficiency EVAP TEMP COND TEMP AMBIENT TEMP RETURN GAS LIQUID TEMP

Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W

ARI 115V ~ 60HZ 6300 1588 1846 850 7.41 1.87 2.17 7.2°C (45°F) 54°C (130°F) 35°C (95°F) 18.3°C (65°F) 46°C (115°F)

General

Evaporating Temp. Range:-6.7°C to 12.8°C (20°F to 55°F)

Motor Torque:High Start Torque (HST)

Compressor Cooling:Fan

Mechanical

Displacement (cc):18.584

Oil Type:Polyolester

Viscosity (cSt):32

Oil Charge (cc):512

Electrical

Voltage Range (50 Hz):90-110

Voltage Range (60 Hz):103-127

Locked Rotor Amps (LRA):48

Rated Load Amps (RLA 50 Hz):0

Rated Load Amps (RLA 60 Hz):9.5

Max. Continuous Current (MCC in Amps):12.2

Motor Resistance (Ohm) – Main:.66

Motor Resistance (Ohm) – Start:4.6

Motor Type:CSIR

Overload Type:N/A

Relay Type:N/A

Details

Warranty Information: One year warranty on compressor from date of purchase. Buyer is responsible for shipping cost. Defective unit must ship prepaid. Return Merchandise Authorization (RMA) must be pre-approved by contacting us. No exception. NOTE: We only ship this unit to 48 Continental States.
