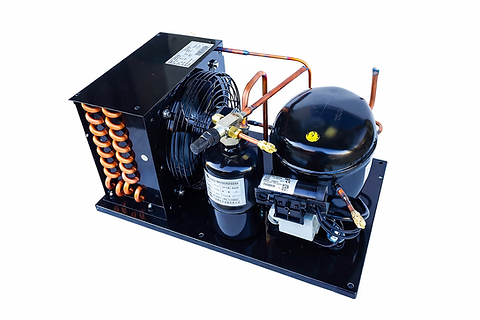

Indoor FFI12HBX Unit 1/3+ HP, High Temp R134a 115V

Indoor Condensing Unit Multi-Temp 1/3+ HP, R134a, 115V

Dimension 19-5/8″L X 12-3/4″W X 10″H

Ensembled in USA. Unit Comes With Embraco Compressor # FFI12HBX

One Year Manufacturer’s Warranty on Compressor

Performance

Refrigerant: R134a Displacement (cu.in): 0,68

Voltage: 115-127 V 60 Hz 1 ~ Lubricant Type: ISO22

Frequency (Hz): 60 Lubricant Charge (fl.oz.): 9

Application: HBP Motor Type: CSIR

HP: 1/3+ Starting Torque: HST

Efficiency: 8,66 Type of Test: ASHRAE32

Capacity: 5.300

External Features

Application

Maximum ambient temperature (ºF): 89,6

Expansion device: Capillary/ Valve

Cooling: Fan Cooling

Air flow rate:

Mechanical Data

Bill of materials: 513200003

Starting torque: High Starting Torque

Bore (inch): 1,02

Stroke (inch): 0,41

Weight (lb): 23,59

Electrical Data

Motor type: CSIR

Winding Resistance (77ºF) – Start: 3,87

Winding Resistance (77ºF) – Run: 1,04

Warranty

One year warranty from date of purchase. Buyer is responsible for shipping cost. Defective unit must ship prepaid. Return Merchandise Authorization (RMA) must be pre-approved by contacting us. No exception.

NOTE: We only ship this unit to 48 Continental States.
