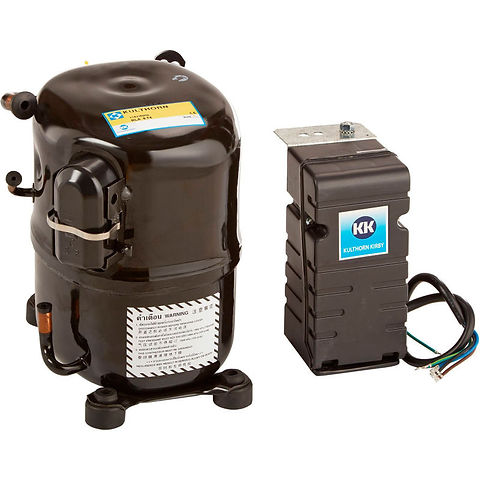

Kulthorn WJ2440Z-2 Compressor Low Temp 1HP, R404A, 220V

One Year Warranty.

Electrical : 200-230 V/60 Hz. 1 Phase

Nominal Performance

Capacity 1,145 / – Watts

3,907 / – BTU/Hr

985 / – Kcal/Hr

Power Input 970 / – Watts

Locked Rotor Amps 43.00 / – Amps

Max Continuous Current – / – Amps

Rated Load Amps 5.20 / – Amps

COP 1.18 / – Watts / Watts

EER 4.03 / – BTU/W-Hr

Performance

Nominal Performance

Capacity 1,145 / – Watts

3,907 / – BTU/Hr

985 / – Kcal/Hr

Power Input 970 / – Watts

Locked Rotor Amps 43.00 / – Amps

Max Continuous Current – / – Amps

Rated Load Amps 5.20 / – Amps

COP 1.18 / – Watts / Watts

EER 4.03 / – BTU/W-Hr

Testing Conditions

Condensing Temperature 129.9 °F

Evaporating Temperature -9.9 / – °F

Liquid Temperature 90.0 °F

Return Gas Temperature 90.0 °F

Ambient Temperature 90.0 °F

Application

Evaporating Temp. Range LBP @ -31.0° F to 10.0° F

Heat Pump -° F to -° F

Refrigerant R404A

Refrigerant Flow Control Capillary Tube

Compressor Cooling Fan

Compressor and Motor data

Compressor Type Reciprocating

Displacement 24.20 cc.

Oil Type Polyolester Oil

Oil Charge 850 cc.

Motor Type C.S.R. ; 2 Pole 3,500 / – r/m

Voltage Range 198-264/- Volts 50/- Hz.

Winding Resistance at 75 °F

Start 4.60 Ohms

Run 1.50 Ohms

Electrical Components

Motor Protector

Type External Overload 3/4″

Model Number 3KME664-17/CASY

Open / Close 140-150 / 70-52 ° C

1st Cycle trip at 75 °F 28.5 Amps(main) – Amps(start)

Motor Starter

Type Potential Relay

Model Number 4043KGE681-4 (RVA3G6D)

Pick Up (max.) 180.00-195.00 Volts

Drop Out (min.) 40.00-105.00 Volts

Terminal Cover KGM 901-1

Start Capacitor 108-130 µF 330 VAC.

Disch Resistor for Start Cap 15000

Run Capacitor 20 µF 440 VAC.

Mounting Kit

Rubber Grommet 4007KGM905-2

Sleeve Grommet 4023KGM903-2

Washer
