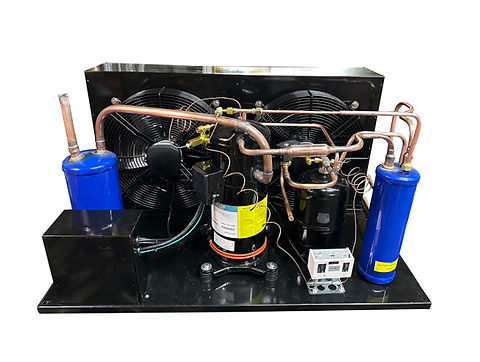

Outdoor QTYF35E7G-Q100 Scroll Low Temp Condensing Unit 5 HP,R404a, 3PH/220V

Outdoor Condensing Unit 5HP, Low Temp, R404A, 3PH/220V

Dimensions: 41-5/8”L X 28-3/8”W X 24-1/8”H

One Year Manufacturer’s Warranty. Assembled in USA.

Unit Equipped With Invotech Scroll Compressor YF20E7G-Q100

Electrical : 220-240/60 Hz. 3 Phase

Nominal Performance

Capacity 17,108 BTU/Hr

Power Input 3,606 Watts

Locked Rotor Amps 136 Amps

Max Continuous Current – / – Amps

Rated Load Amps 14 Amps

Testing Conditions

Condensing Temperature 54.40 °C 129.9 °F

Evaporating Temperature -23.30 / – °C -9.9 / – °F

Liquid Temperature 32.20 °C 90.0 °F

Return Gas Temperature 32.20 °C 90.0 °F

Ambient Temperature 32.20 °C 90.0 °F

Application

Evaporating Temp. Range LBP @ -40.00 ° C to -12.20 ° C (-40.0° F to 10.0° F)

Heat Pump – ° C to – ° C (-° F to -° F)

Refrigerant R404A

Refrigerant Flow Control Capillary Tube

Compressor Cooling Fan

Details

Warranty Information: One year warranty on compressor from date of purchase. Buyer is responsible for shipping cost. Defective unit must ship prepaid. Return Merchandise Authorization (RMA) must be pre-approved by contacting us. No exception. NOTE: We only ship this unit to 48 Continental States.
