Outdoor QTYM125E7G-Q100 Scroll Med Temp Condensing Unit 7 HP/3 Phase, R4
Price range: $10,390.00 through $10,910.00
| Add Cover? | No Thanks, Yes Please |
|---|

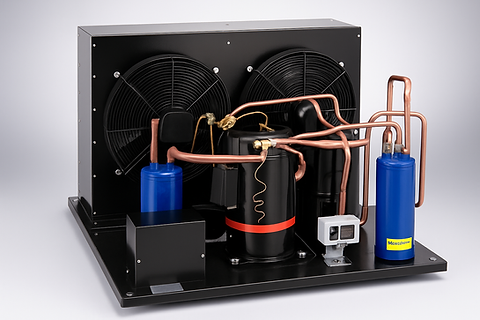

Outdoor Med Temp Condensing Unit 7 HP, R404A, 3 Phase
Assembled in USA. Unit equipped with Invotech QTYM125E7G-Q100 Scroll Compressor.
NOTE: Due to the dimensions and weight of the unit, this listing is for local pickup only.
Type: Low-side shell-design scroll compressor for medium-temperature refrigeration.
Rated power: 7 HP.
Rated capacity: ~ 50,951-51,000 BTU/h (around 15 kW) at specified conditions with refrigerant R404A.
Refrigerants listed: R404A (primary), and in some materials also R448A / R449A.
Voltage and phase: 220 V, 3-phase, 60 Hz.
Displacement: 115.5 cc/rev.
Rated input power: ~ 6,752 W.
Rated current (RLA): ~ 22.9 A.
Lock-Rotor Amps (LRA): 241 A.
Speed: 3,500 r/min.
Oil type: POE oil (viscosity 32 cSt @ 40 °C; density 0.977 kg/L @ 20 °C)
Maximum sound power: 82 dBA (running envelope)
Operating voltage range: Min ~ 187 V, Max ~ 253 V.
Details
Warranty Information: One year warranty on compressor from date of purchase. Buyer is responsible for shipping cost. Defective unit must ship prepaid. Return Merchandise Authorization (RMA) must be pre-approved by contacting us. No exception. NOTE: We only ship this unit to 48 Continental States. CROSS REFERENCES: “CS27K6E-PFV-236 CS20K6E-PFV-***”-M63A243BBCAVA9522ZXD”ICE2106 9181123-11″
