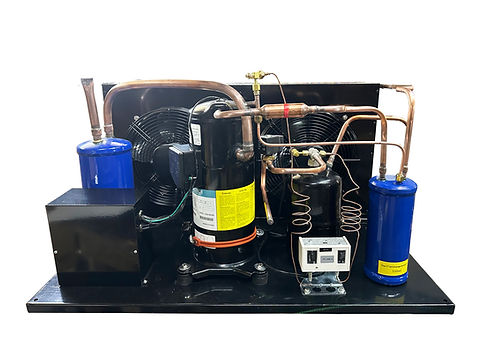

Outdoor QTYM49E7G-Q100 Scroll Med Temp Condensing Unit 3HP, R404A 3PH/220V
Price range: $5,740.00 through $6,040.00
| Add Cover? | No Thanks, Yes Please |
|---|
Assembled in USA. Unit equipped with Invotech YM49E7G-Q100 Scroll Compressor.
38-5/8”L X 28-5/8”W X 22-1/8”H
Description
HP:3HP
Volts:208/230 VAC
Phase:3PH
Refrigerant:R404a
BTU:20,600 BTU @ 20°F
Nominal Performance
Capacity 3,227 / – Watts
20,600 / – BTU/Hr @ 20F
Power Input 3,108 / – Watts
Locked Rotor Amps 99.00 / – Amps
Max Continuous Current – / – Amps
Rated Load Amps 10.4 / – Amps
Discharge Tube: 1/2″
Suction Tube:7/8″
Testing Conditions
Condensing Temperature 129.9 °F
Evaporating Temperature 19.9 / – °F
Liquid Temperature 115.0 °F
Return Gas Temperature 95.0 °F
Ambient Temperature 95.0 °F
Application
Evaporating Temp. Range MBP @ -9.9° F to 34.0° F
Heat Pump -° F to -° F
Refrigerant R404A
Refrigerant Flow Control Capillary Tube
Compressor Cooling Fan
Compressor and Motor data
Compressor Type Scroll
Oil Type : Polyolester Oil
Details
Warranty Information: One year warranty on compressor from date of purchase. Buyer is responsible for shipping cost. Defective unit must ship prepaid. Return Merchandise Authorization (RMA) must be pre-approved by contacting us. No exception. NOTE: We only ship this unit to 48 Continental States. CROSS REFERENCES: “CS27K6E-PFV-236 CS20K6E-PFV-***”-M63A243BBCAVA9522ZXD”ICE2106 9181123-11″
