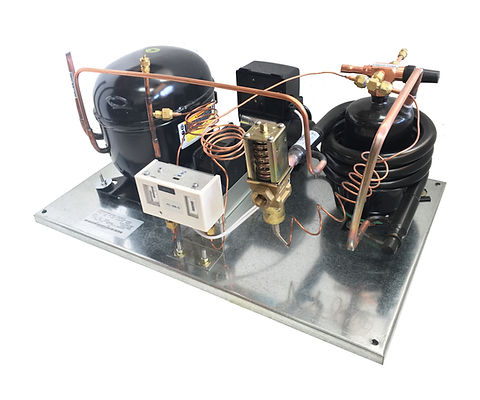

Water Cooled Unit QTYM49E3G-Q100 3HP, R404A, 220V/1PH
$5,149.00
Assembled in USA. Unit equipped with Invotech YM49E3G-Q100 Scroll Compressor.
38-5/8”L X 28-5/8”W X 22-1/8”H
Description
HP:3HP
Volts:208/230 VAC
Phase:1 PH
Refrigerant:R404a
BTU:20,600 BTU @ 20°F
Nominal Performance
Capacity 3,227 / – Watts
20,600 / – BTU/Hr @ 20F
Power Input 3,108 / – Watts
Locked Rotor Amps 76.00 / – Amps
Max Continuous Current – / – Amps
Rated Load Amps 15.30 / – Amps
Discharge Tube: 1/2″
Suction Tube:7/8″
Testing Conditions
Condensing Temperature 129.9 °F
Evaporating Temperature 19.9 / – °F
Liquid Temperature 115.0 °F
Return Gas Temperature 95.0 °F
Ambient Temperature 95.0 °F
Application
Evaporating Temp. Range MBP @ -9.9° F to 34.0° F
Heat Pump -° F to -° F
Refrigerant R404A
Refrigerant Flow Control Capillary Tube
Compressor Cooling Fan
Compressor and Motor data
Compressor Type Scroll
Oil Type : Polyolester Oil
