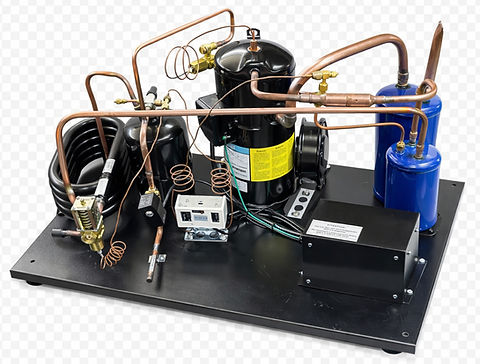

Water-Cooled Unit QTYM49E7G-Q100 Med Temp Condensing Unit 3HP, R404A, 3PH/220
$5,150.00
Unit equipped with INVOTECH (YM49E7G-Q100) Scroll Compressor.
Description
HP: 3 HP
Volts: 208/230 VAC
Phase: 3PH
Refrigerant: R404a
BTU: 20,600 BTU @ 20°F
Nominal Performance
Capacity 3,227 / – Watts
20,600 / – BTU/Hr @ 20F
Power Input 3,108 / – Watts
Locked Rotor Amps 99.00 / – Amps
Max Continuous Current – / – Amps
Rated Load Amps 10.4 / – Amps
Discharge Tube: 1/2″
Suction Tube:7/8″
Testing Conditions
Condensing Temperature 129.9 °F
Evaporating Temperature 19.9 / – °F
Liquid Temperature 115.0 °F
Return Gas Temperature 95.0 °F
Ambient Temperature 95.0 °F
Application
Evaporating Temp. Range MBP @ -9.9° F to 34.0° F
Heat Pump -° F to -° F
Refrigerant R404A
Refrigerant Flow Control Capillary Tube
Compressor Cooling Fan
Compressor and Motor data
Compressor Type Scroll
Oil Type : Polyolester Oil
