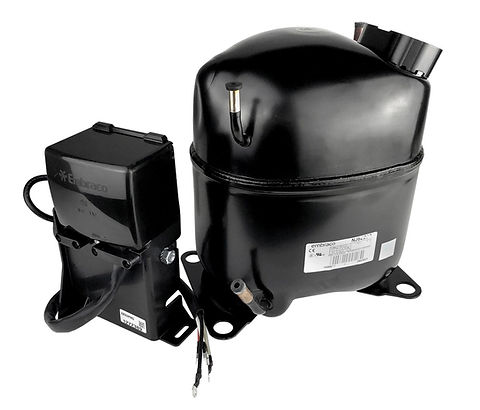

Embraco NJ6226Z2 Compressor 1HP, R134a 220V

Embraco NJ6226Z2

Description

Refrigerant:R-134a Model:NJ6226Z

Voltage:208-230V MPN:142HD14

Frequency (Hz):60Displacement (cu.in):2.10

Application:HBPLubricant Type:ISO22

HP:1 1/4Lubricant Charge (fl.oz.):25

Efficiency:7.70Motor Type:CSCR

Capacity (Btu/h):11,130Starting Torque:High Starting Torque

Type of Test:ASHRAE46Weight (lbs):43.87

Warranty Description:1-yr Limited WarrantyDim ( W x L x H ) +/-5%:8.5″, 14.0″, 10.5″

External Features

ShapeMaterialDiameter (inch)

Suction ConnectorVerticalCopper3/8

Discharge ConnectorSlanted JCopper5/16

Process ConnectorVerticalCopper1/4

Oil Cooler:

Base Plate:American Standard

Tray Holder:No

Application

Maximum ambient temperature (ºF):109.4

Expansion device:Capillary/ Valve

Cooling:Fan Cooling

Air flow rate:

Mechanical Data

Bore (inch):1.69

Stroke (inch):0.47

Electrical Data

Winding Resistance (77ºF) – Start:8.47

Winding Resistance (77ºF) – Run:1.51

Check Point – Condensing Temperature 130 °F

Evaporating TemperatureCooling Capacity +/-5%Power Consumption +/-5%Current Consumption +/-5%Efficiency +/-7%

°F(kcal/h)(W)(Btu/h)(W)(A)(kcal/Wh)(W/W)(Btu/Wh)

452,8243,28511,2081,4497.201.952.277.74

Details

Warranty Information One year warranty from date of purchase. Buyer is responsible for shipping cost. Defective unit must ship prepaid. Return Merchandise Authorization (RMA) must be pre-approved by contacting us. No exception. NOTE: We only ship this unit to 48 Continental States.
