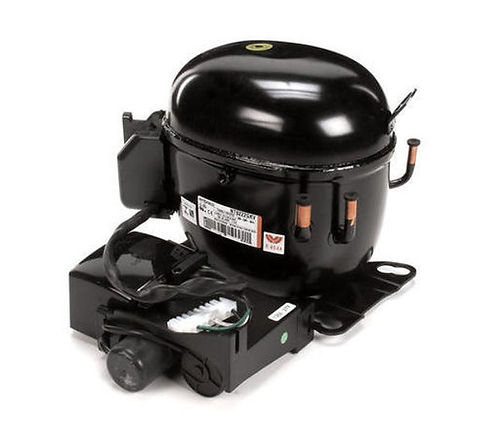

Embraco NT6222GKV2 Compressor 7/8HP, R404A, 220V

Embraco # NT6222GKV2

Description

Refrigerant: R-404A Displacement (cu.in): 1,06

Voltage: 208-230 V 60 Hz 1~ Lubricant Type: ISO22

Frequency (Hz): 60 Lubricant Charge (fl.oz.): 15

Application: MBP Motor Type: CSIR

HP: 7/8

Starting Torque: HST

Efficiency: 6,42 Type of Test: ASHRAE46

Capacity: 9.992

External Features

Shape Material Diameter (inch)

Suction Connector Vertical Copper 0,38

Discharge Connector Vertical Copper 0,25

Process Connector Vertical Copper 0,25

Oil Cooler:

Base Plate: Universal

Tray Holder: No

Weight (lb): 37,92

Application

Maximum ambient temperature (ºF): 109,4

Expansion device: Capillary/ Valve

Cooling: Fan Cooling

Air flow rate:

Mechanical Data

Bill of materials: 922KD04

Starting torque: High Starting Torque

Bore (inch): 1,34

Stroke (inch): 0,37

Weight (lb): 37,92

Electrical Data

Motor type: CSIR

Winding Resistance (77ºF) – Start: 6,60

Winding Resistance (77ºF) – Run: 1,58

Check Point – Condensing Temperature 129,92 °F

Evaporating Temperature Cooling Capacity +/-5% Power Consumption +/-5% Current Consumption +/-5% Efficiency +/-7%

°F (kcal/h) (W) (Btu/h) (W) (A) (kcal/Wh) (W/W) (Btu/Wh)

44,96 2.531 2.943 10.043 1.460 8,19 1,73 2,02 6,88

Details

Warranty Information: One year warranty from date of purchase. Buyer is responsible for shipping cost. Defective unit must ship prepaid. Return Merchandise Authorization (RMA) must be pre-approved by contacting us. No exception. NOTE: We only ship this unit to 48 Continental States.
